Protect Your Buses with our Automatic Fire Safety System
Our AIS-135 certified Fire Detection and Alarm System (FDAS) & Fire Detection and Suppression Systems (FDSS) for Buses ensure maximum safety for passengers and buses, with cutting-edge technology and rapid response times.
Why Do Buses Need Fire Protection?
Since 1st Oct 2023 it has been mandated by MoRTH (Ministry of Road Transport & Highways) that Type III buses of category M3 (ie Long Distance buses) and school buses must meet the stringent AIS-135 standards.
These standards mandate comprehensive fire detection, suppression, and alarm systems to minimize risks associated with fire incidents. In a country where buses are a major mode of transportation, protecting lives by quickly detecting and controlling fire hazards is critical. Adopting compliant fire safety system enhances passenger safety thus contributing to safer public transportation and instilling greater confidence among commuters.
Bus fires typically originate due to several factors :
Road Accidents
Lack of maintenance
Short circuits from faulty electrical wiring
Combustible debris accumulating over time
Flammable fluids present in the engine bay

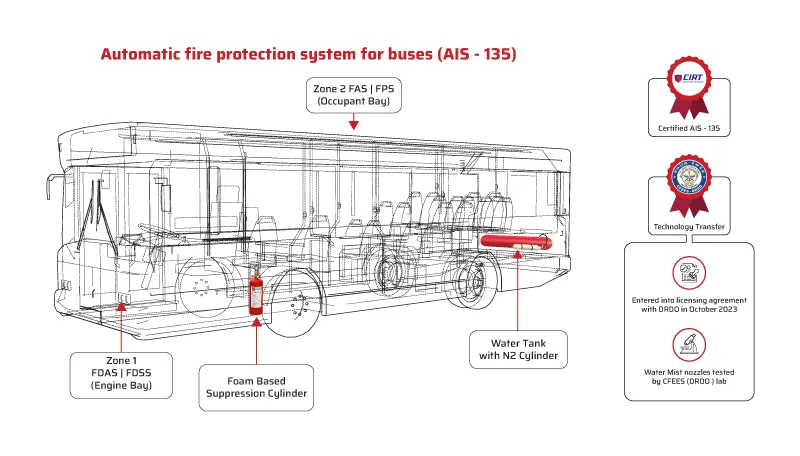

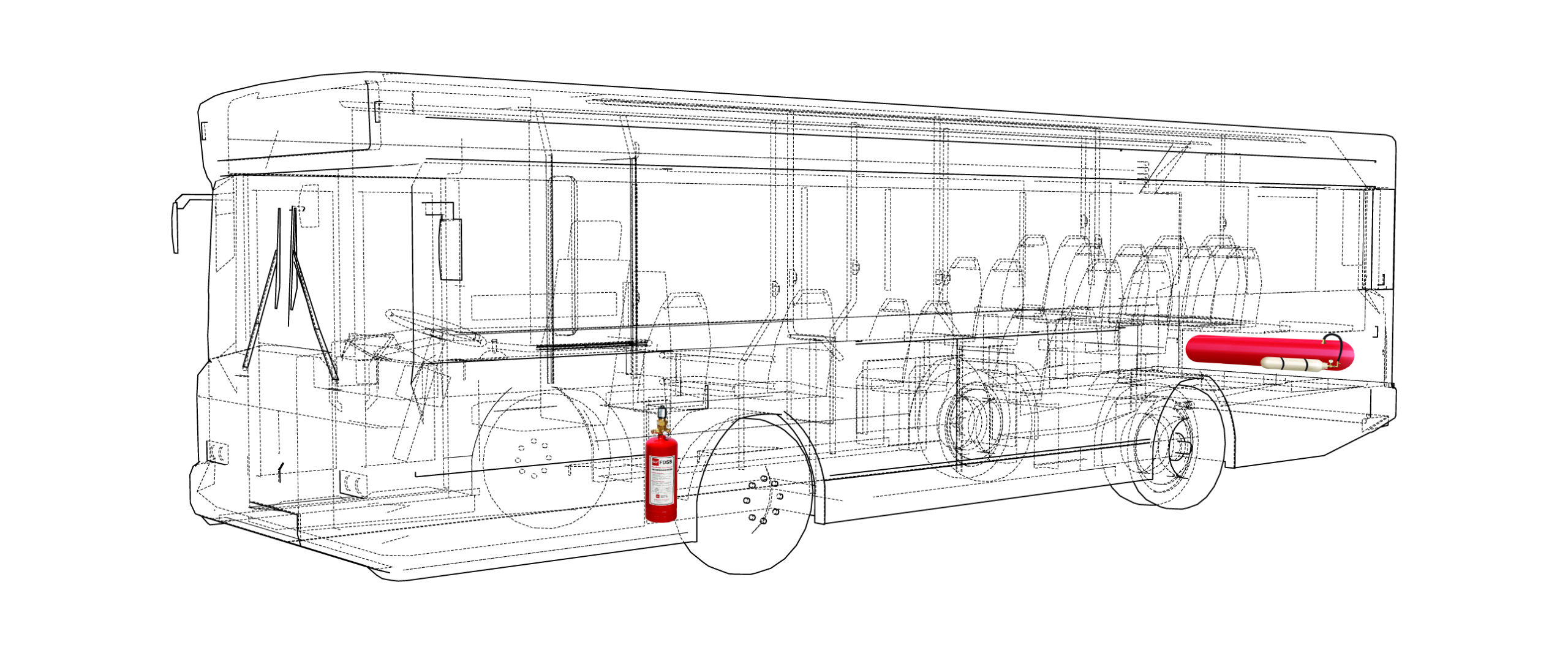

Automatic Fire Safety System for Buses
This cutting-edge system designed for buses saves lives against fire accidents, detecting and suppressing flames swiftly and effectively.
Fire Detection and Alarm System (FDAS) | Fire Detection and Suppression System (FDSS) at Engine Bay
Our FDAS | FDSS system automatically activates upon detecting a fire in the engine bay and uses an eco-friendly foam suppressant to rapidly remove heat, cooling the hot surface and forming a film on the fuel to quickly knock down flames and reduce the risk of re‑ignition
Fire Alarm System (FAS) | Fire Protection System (FPS) at Occupant Bay
The primary purpose of the FAS | FPS system is to swiftly detect early-stage fires within the bus passenger compartment and promptly suppress them using a water mist system, ensuring sufficient time for safe passenger evacuation
Foam Based Fire Suppression Cylinder
Water Tank with N2 Cylinder
Two Zone Control Panel
OUR KEY USPs
FDAS | FDSS at Engine Bay
FAS | FPS at Occupant Bay
Fire Detection and Alarm System (FDAS) | Fire Detection and Suppression System (FDSS) at Engine Bay
Designed specifically for school buses and long-distance buses under the M3 category, our FDAS | FDSS ensures unmatched safety by meeting the stringent AIS-135 standards. This system is expertly crafted to protect the engine bay, providing early detection and rapid suppression of fires. Certified by CIRT, FDAS | FDSS guarantees that your vehicle’s engine bay remains secure, minimizing risks and enhancing passenger safety.
System Features
Instant Flooding to suppress the fire in seconds
Automatic Activation upon detection of fire in the Engine Bay
Depending on the size of the Engine bay, the system uses approx 7L of foam based extinguishing agent
The conic nozzles are positioned in risk areas
UL listed liner heat detection cable
Advantages
Environmentally Safe
Low Pressure System at 20 Bar
Easy Clean-Up
Lightweight Cylinder
Bio-Degradable
SS Pipes, Fittings and Nozzles
Non-Toxic
Pressure Gauge
Fire Alarm System (FAS) | Fire Protection System (FPS) at Occupant Bay
Our FAS | FPS is engineered to safeguard the occupant bay of school buses and long-distance buses under the M3 category, delivering top-tier safety in compliance with AIS-135 standards. This system is designed to protect passengers by detecting and responding to fire hazards within the cabin. With Technonlogy transfer from CFEES (DRDO) our FAS | FPS offers a reliable defense, ensuring that the occupant area remains safe and secure during transit.
System Features
Nitrogen Cylinder - 150/200 bar
Capable to serve buses from seating capacity of 20 to 80
Low Pressure Water Mist System - Full Cone nozzles (Leachier Make)
Automatic/Manual Activation of nozzles upon detection of smoke in the occupant bay
3 minute operation
Advantages
Water flow rate per nozzle
1.65 L/min at 7 bar
Scope of Supply
Spray Nozzle
Fittings
SS 304/316 material
Spray angle
90+
Vibration and Shock Proof
Plug and play saddle system to minimise vibration and shocks
Water flow rate per nozzle
1.65 L/min at 7 bar
The Shimnit New Fire- Automatic Fire Protection System
Our Automatic Fire Protection System (AFPS) for Buses provides state-of-the-art fire safety solutions, meticulously designed to protect both the Engine Bay and Occupant Bay areas of the vehicle. It integrates advanced Fire Detection, Alarm, and Suppression systems tailored to each specific zone, ensuring comprehensive safety of passengers.
Here’s a breakdown of how the system functions, highlighting its key features for each specific zone:
1. Engine Bay Protection
How It Works :
The engine bay is one of the most fire-prone areas in a bus due to the presence of flammable fluids, electrical components, and high temperatures. Our fire suppression system utilizes a foam-based extinguishing agent designed to automatically activate upon detecting a fire in the engine bay. The system’s linear heat detection cable quickly identifies temperature spikes, activating the suppression system to flood the area with foam within seconds, effectively extinguishing the flames.
Key Features :
Rapid Detection
The system’s linear heat detection cable responds in under 10 seconds to temperature increases, providing instant alerts to the driver’s display.
Automatic Activation
The foam-based extinguishing agent released automatically, offering immediate suppression to prevent fire escalation.
Environmentally Safe
The foam concentrate used is biodegradable, non-toxic, and easy to clean, ensuring minimal environmental impact.
Robust Components
Featuring lightweight cylinders, stainless steel pipes, and pressure gauges, the system is built to withstand harsh conditions.
Low Pressure Operation
The system operates at 20 bar pressure, providing efficient and controlled deployment of the extinguishing agent.
2. Occupant Bay Protection
How It Works :
The occupant bay is protected using a low-pressure water mist system that activates when smoke is detected in the bus interior. Our multisensory detectors, equipped with optical and heat-sensing capabilities, ensure that any signs of a fire trigger an immediate response. Once activated, the water mist system disperses a fine spray through strategically placed nozzles, rapidly cooling and suppressing the fire while minimizing water damage.
Key Features :
Multisensory Detection
The system utilizes Orbis optical/heat multisensory detectors, which are highly sensitive to fast-burning fires while minimizing false alarms through transient rejection algorithms.
Fast Activation
The water mist system deploys automatically, operating for a duration of three minutes to ensure thorough suppression.
Efficient Water Usage
Each nozzle has a flow rate of 1.65 liters per minute at 7 bar, providing effective fire suppression with minimal water.
Stainless Steel Construction
The water mist nozzles are made from SS 304 material, ensuring durability and resistance to corrosion.
Plug-and-Play Installation
Our proprietary saddle design makes the system easy to install and maintain, with a compact configuration that fits various bus models.
Zone Control
The system is divided into two zones—Zone 1 for the occupant bay and Zone 2 for the engine bay—allowing tailored response based on the fire’s location.
Automatic Fire Protection System for Buses
Our Automatic Fire Protection System for Buses provides state-of-the-art fire safety solutions, meticulously designed to protect both the Engine Bay and Occupant Bay areas of the vehicle. It integrates advanced Fire Detection, Alarm, and Suppression systems tailored to each specific zone, ensuring comprehensive safety of passengers.
Engine Bay: Fire Detection and Suppression System (FDSS) & Fire Detection and Alarm System (FDAS)
The Engine Bay is highly susceptible to fire due to the presence of combustible materials, high operating temperatures, and complex electrical systems. To address these risks, our system employs FDAS and FDSS for rapid detection and suppression.
- Fire Detection and Alarm System (FDAS): The FDAS is equipped with advanced sensors that continuously monitor for smoke, heat, or flame in the Engine Bay. On detecting a potential fire, the system instantly triggers visual and audible alarms to alert the driver, enabling prompt action.
- Fire Detection and Suppression System (FDSS): Upon detection of fire, the FDSS automatically activates, deploying a specialized suppressant agent that effectively extinguishes flames in the Engine Bay. The suppression agent is environmentally safe, non-corrosive, and specifically formulated to tackle fuel and electrical fires, minimizing vehicle damage and enhancing safety.
Occupant Bay: Fire Alarm System (FAS) & Fire Protection System (FPS)
The Occupant Bay, dedicated to passenger safety, incorporates advanced detection and protection measures through FAS and FPS to safeguard occupants from potential fire hazards.
- Fire Alarm System (FAS): FAS utilizes strategically placed smoke and heat detectors within the passenger compartment, providing immediate alerts when a fire is detected. The system ensures rapid response, allowing for swift passenger evacuation and emergency procedures.
- Fire Protection System (FPS): The FPS in the Occupant Bay is based on cutting-edge technology transferred from the Centre for Fire, Explosive and Environment Safety (CFEES), a premier DRDO (Defence Research and Development Organisation) lab. This advanced technology enhances fire safety protocols, focusing on fire containment and protective measures that secure the bus interior, guiding passengers to safety during emergencies.
Key Features:
DETECT: The linear heat detection cable in the engine bay or the multi‑sensor detectors in the passenger bay can detect a fire within seconds and send a signal to the fire control panel located in the driver’s cabin.
ALERT: An audio-visual control panel paired with a hooter/siren alerts the driver and passengers in real time.
SUPPRESS: In the event of a fire, the foam-based suppression system located in the engine bay or the water mist system located in the passenger bay will activate to extinguish the fire & bring down the temperature ensuring a safer environment for passengers to evacuate.

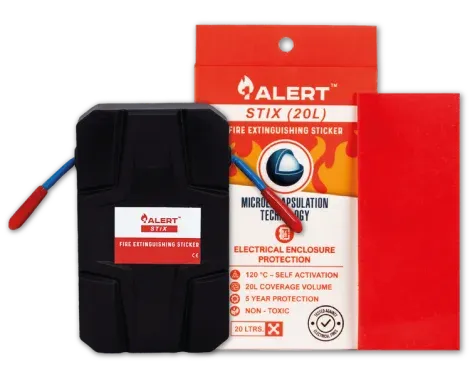

1Alert™ Fire
A breakthrough in electrical fire protection, 1Alert is a pioneering solution designed to detect and extinguish fires within enclosed electrical panels. With a lifespan of up to 5 years, this unmanned system provides an effective and maintenance-free fire protection solution.
Key Features:
- Non-invasive Installation: No cylinders, tubing, or pressurized agents required.
- Long-lasting: 5-year operational lifespan without maintenance.
- Quick Response: Automatically deploys extinguishing agent at 120°C
Compliance & Certifications
Shimnit New Fire’s Fire Safety System are fully compliant with AIS-135 regulations, ensuring your fleet meets the highest fire safety standards. Our partnership with DRDO (CFEES) ensures the system is equipped with cutting-edge technology, including certified nozzles.

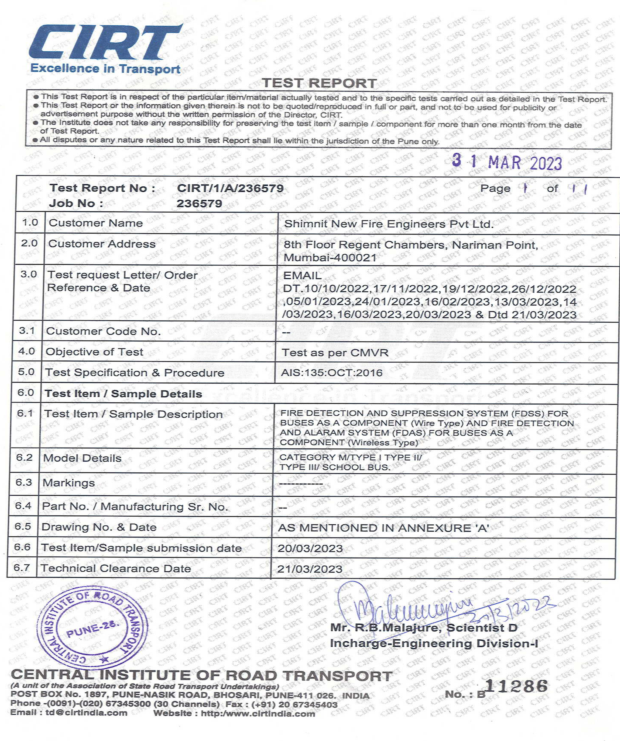

FDAS & FDSS (AIS – 135) Certification by CIRT (Central Institute of Road Transport)

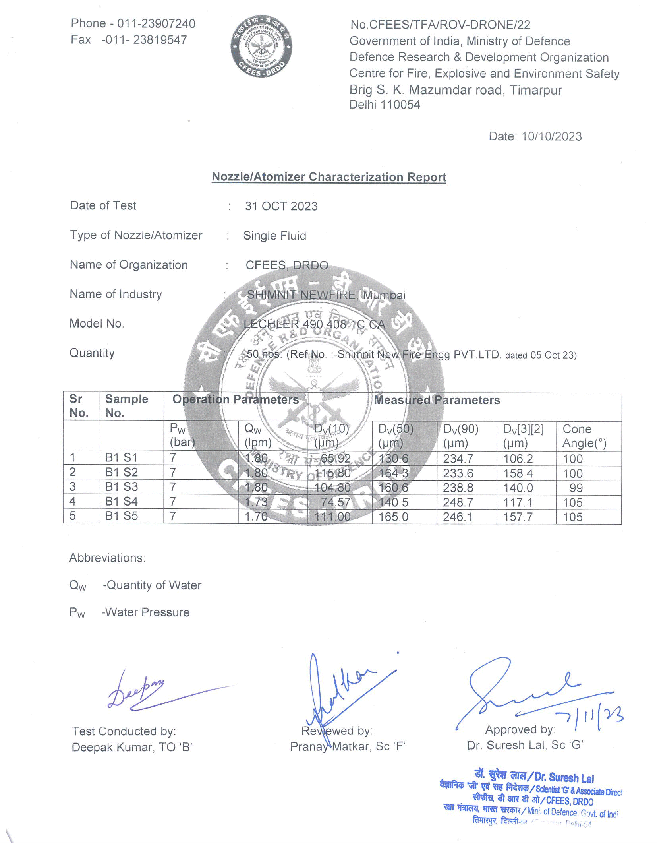

FAS & FPS – Nozzle/Atomizer Test Certified by CFEES (Centre for Fire, Explosive & Environment Safety and establishment of (DRDO)

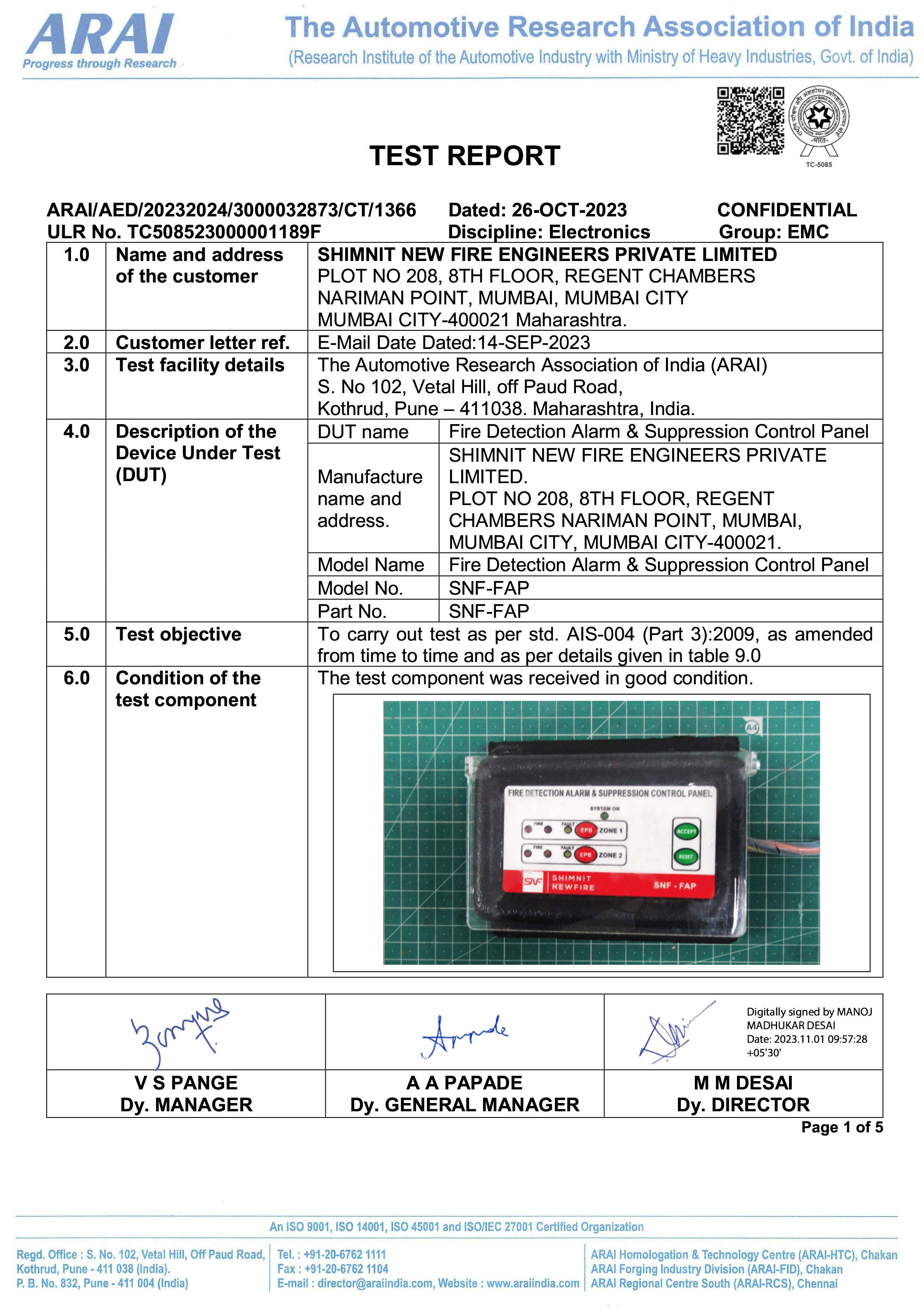

Control Panel – EMI/EMC Test Report by ARAI(The Automotive Research Association of India)
Compliance &
Certifications
Shimnit New Fire’s Fire Safety System are fully compliant with AIS-135 regulations, ensuring your fleet meets the highest fire safety standards. Our partnership with DRDO (CFEES) ensures the system is equipped with cutting-edge technology, including certified nozzles.
ISO 9001:2015 - Quality Management System

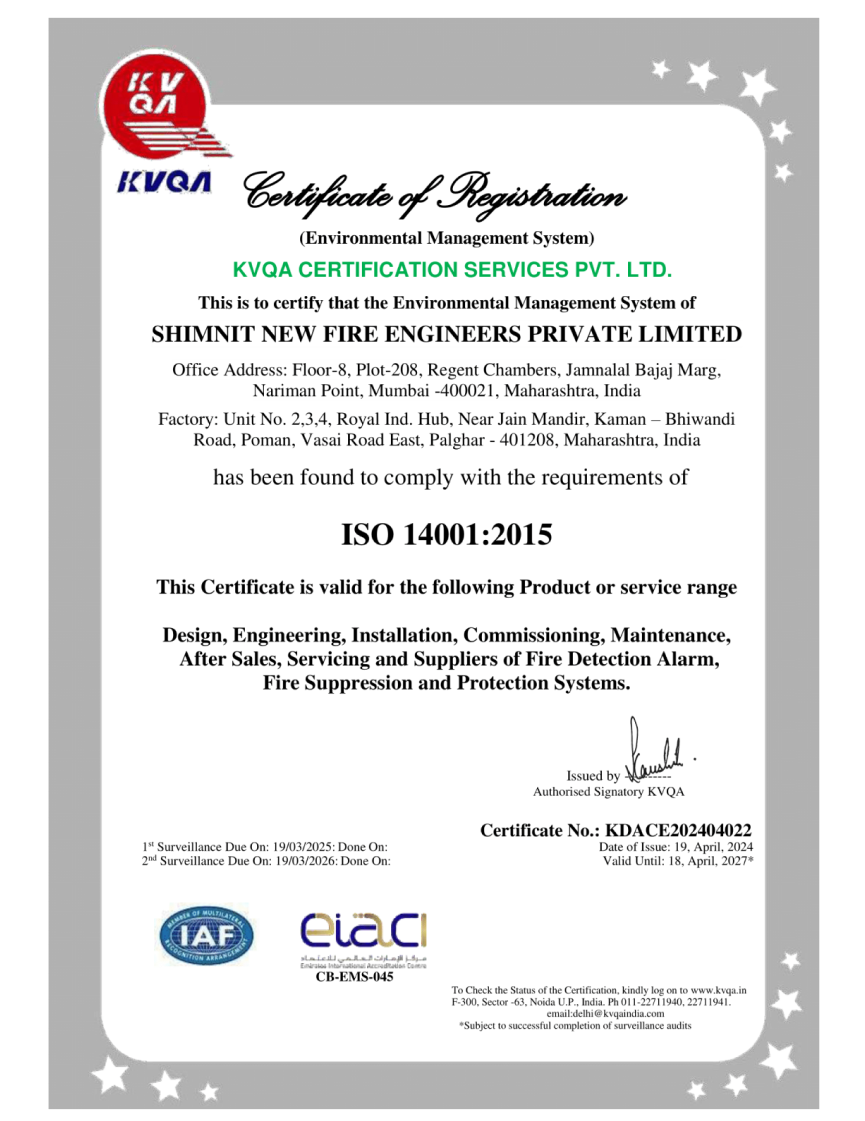

ISO 14001:2015 – Environmental Management System

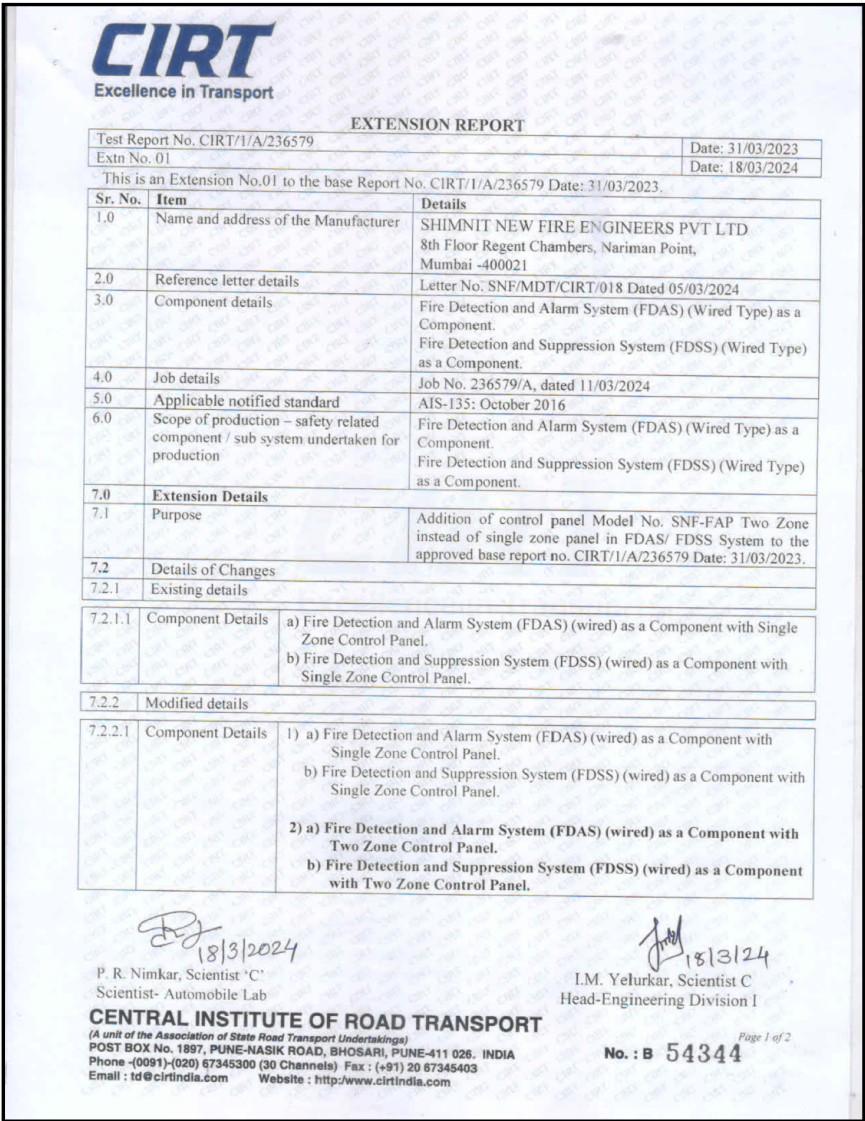

CIRT Extension Report - FDSS & FDAS (AIS-135)

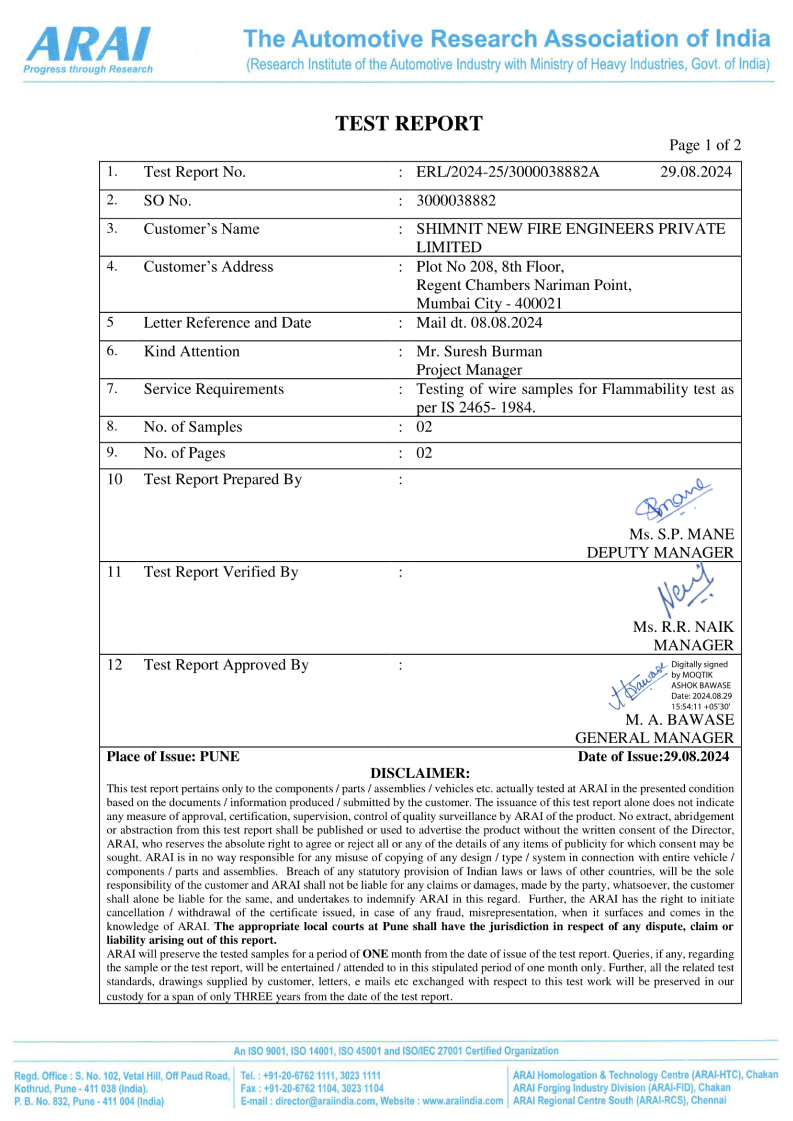

ARAI - Flammability Test Report – Wire Samples (IS 2465:1984)
FDAS & FDSS (AIS – 135) Certification by CIRT (Central Institute of Road Transport)
FAS & FPS – Nozzle/Atomizer Test Certified by CFEES (Centre for Fire, Explosive & Environment Safety and establishment of (DRDO)
Control Panel – EMI/EMC Test Report by ARAI(The Automotive Research Association of India)
